Marking of Sheet Metal using elementary geometry.

Powered by Spearhead Software Labs Joomla Facebook Like Button

Sometimes you don't have the right tools to hand to mark out your plans onto the sheet metal, so using this elementary geometry and a simple engineering compass you can draw a line 90 degrees to a datum you have placed on the metal sheet. Alternatively you can use a pair of Scribers and engineering blue.

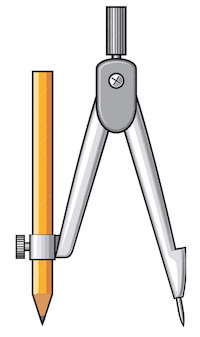

Pencil and Compass

In these steps will show you how to draw a line 90 degrees to a datum.

Step 1) Draw a datum line (A to B) on the metal sheet.

Datum Line A to B

Step 2) Draw a marked line (Point C) where you want the 90 degrees intersect line to be.

Line at 90 Degrees to Datum

Step 3) Open your engineering compass halfway, and placing the needle on the intersect at point C draw an Arch from point D on the Datum line to point E.

Arch from near point A on the Datum line to point B

Step 4) Open up your engineering compass fully, and placing the needle on point D, draw an Arch above point C from point G to F.

draw an Arch above point C from point G to F

Step 5) Now placing the needle on point E, draw an Arch above point C from point H to I.

draw an Arch above point C from point H to I

Step 6) To now finalize draw a line from the intersect point J to the Datum at point C, which is 90 degrees to the datum.

You now have your 90 Degree angle on your sheet metal marked ready for cutting.
